It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost and improve return on investment.

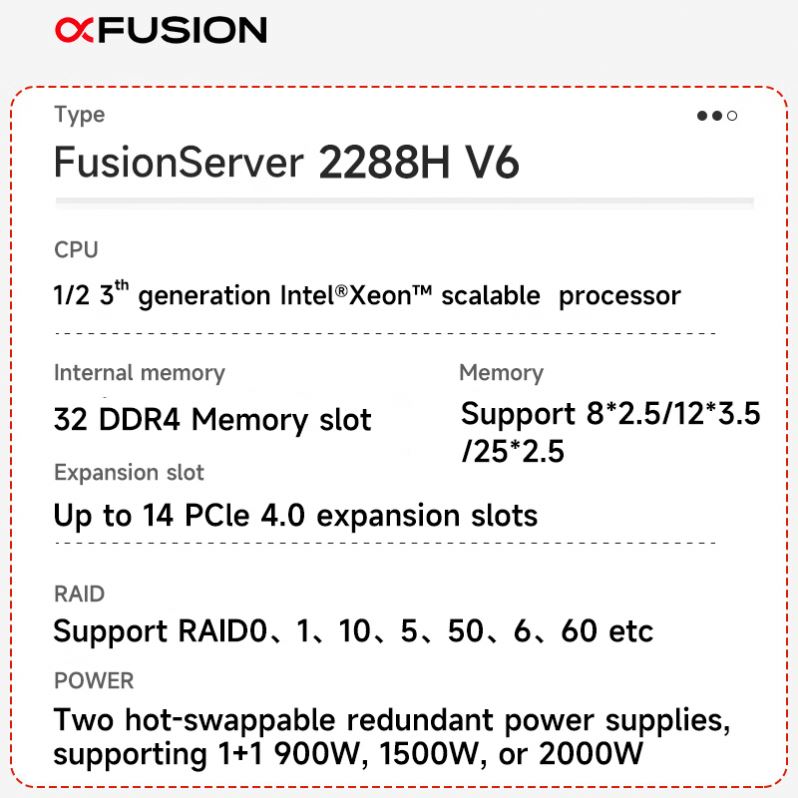

| Server Model | FusionServer 2288H V6 |

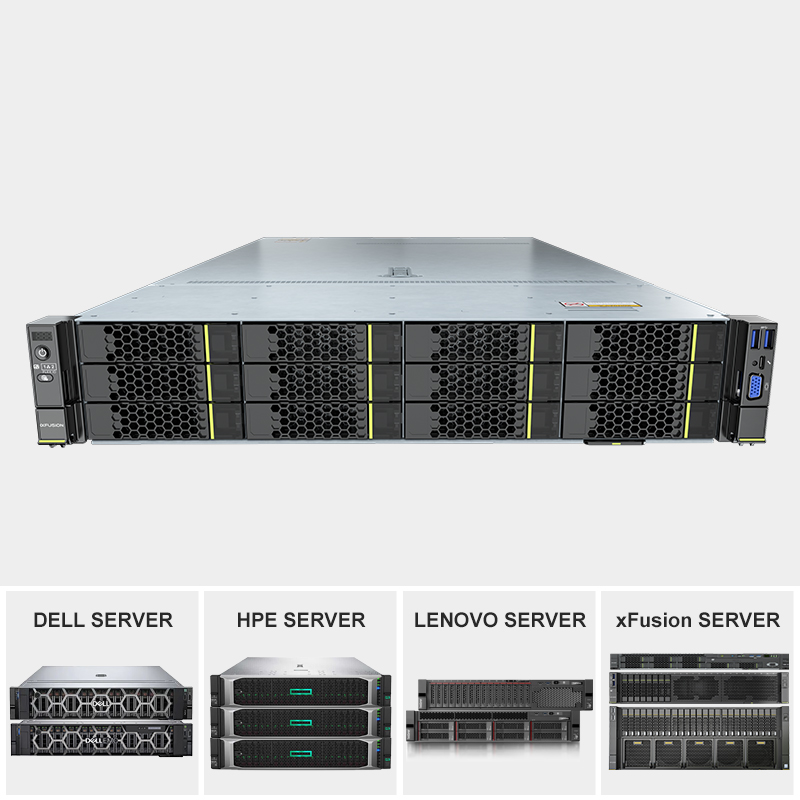

| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
• 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs • Dual M.2 SSDs |

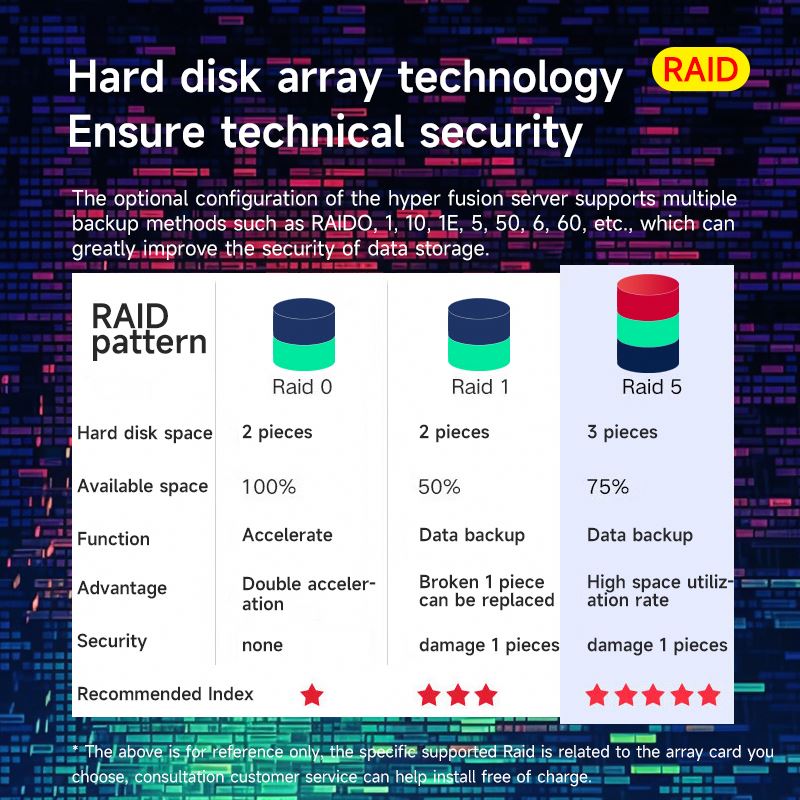

| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor; RAID level migration, drive roaming, self-diagnosis. |
| Network | OCP 3.0 NICs; Two FlexIO card slots; Hot swappable function supported. |
| PCIe Expansion | Maximum of fourteen PCIe 4.0 slots, including dedicated RAID and FlexIO slots. |
| Management | iBMC chip integrates dedicated GE management port; Supports Redfish, SNMP, IPMI 2.0; Optional FusionDirector management software. |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Ubuntu, Debian, etc. |
| Security Features | Power-on password, TPM 2.0, secure boot, and cover opening detection. |
| Fan Modules | Four hot-swappable counter-rotating fan modules in N+1 redundancy mode. |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
| Power Supply | Two hot-swappable PSUs (Redundancy 1+1); Options: 900W, 1200W, 1500W, 2000W, 3000W Platinum/Titanium. |
