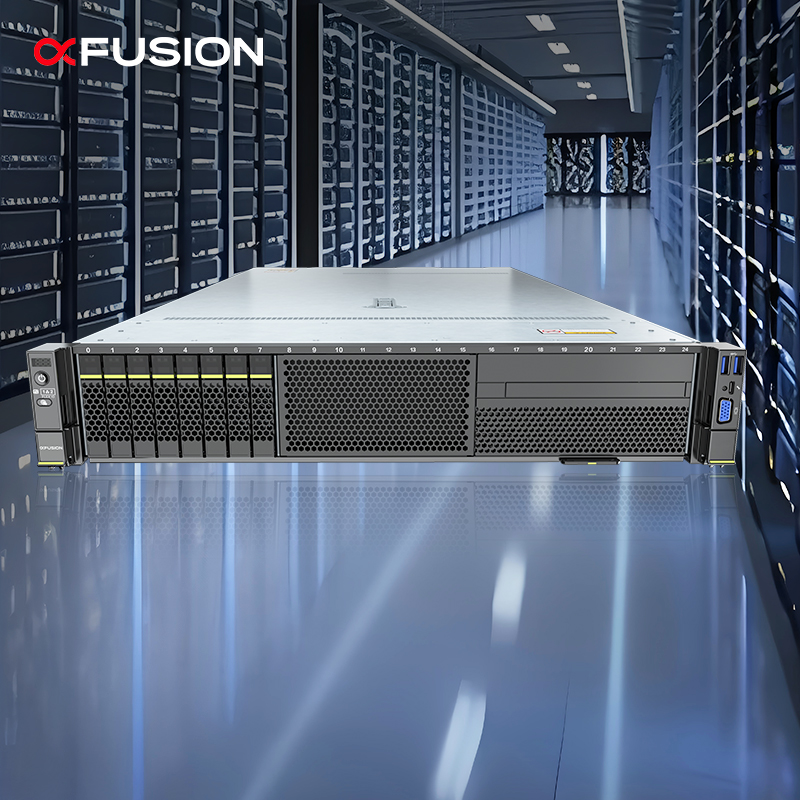

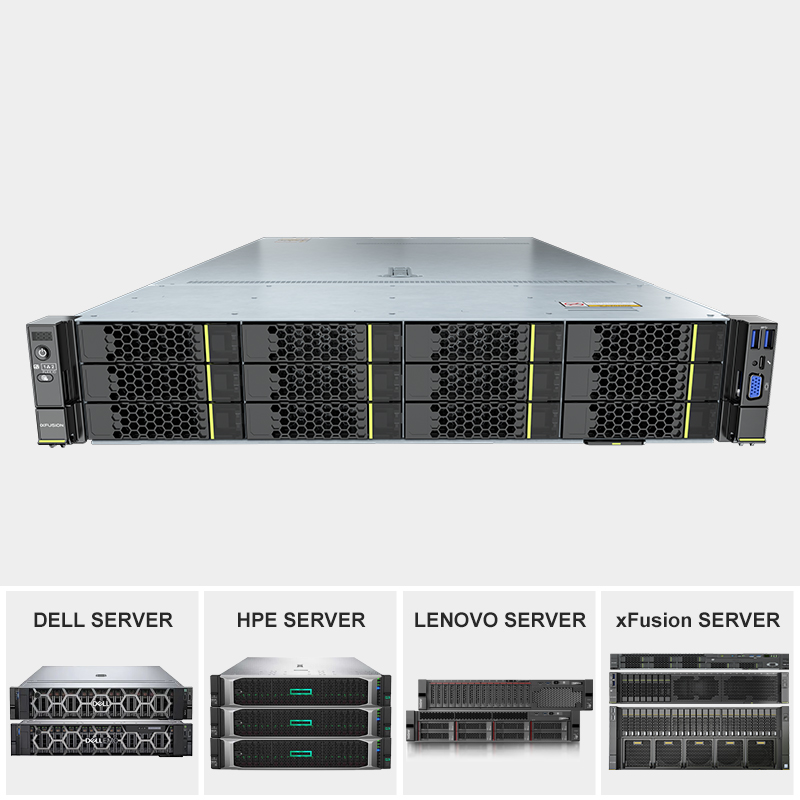

The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V6 can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources.
It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost and improve return on investment.

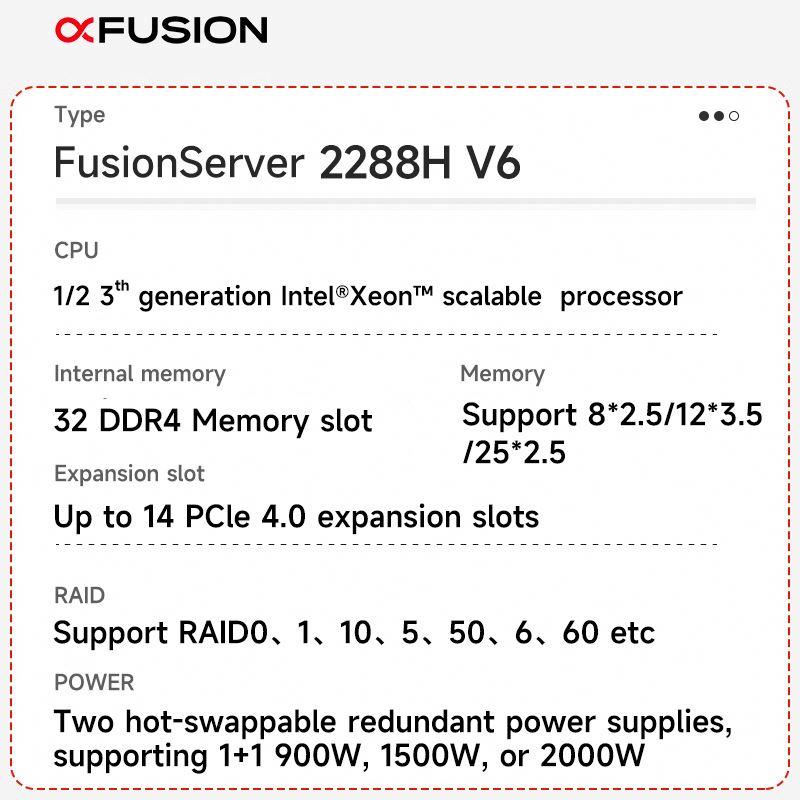

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
• 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs • Flash storage: Dual M.2 SSDs |

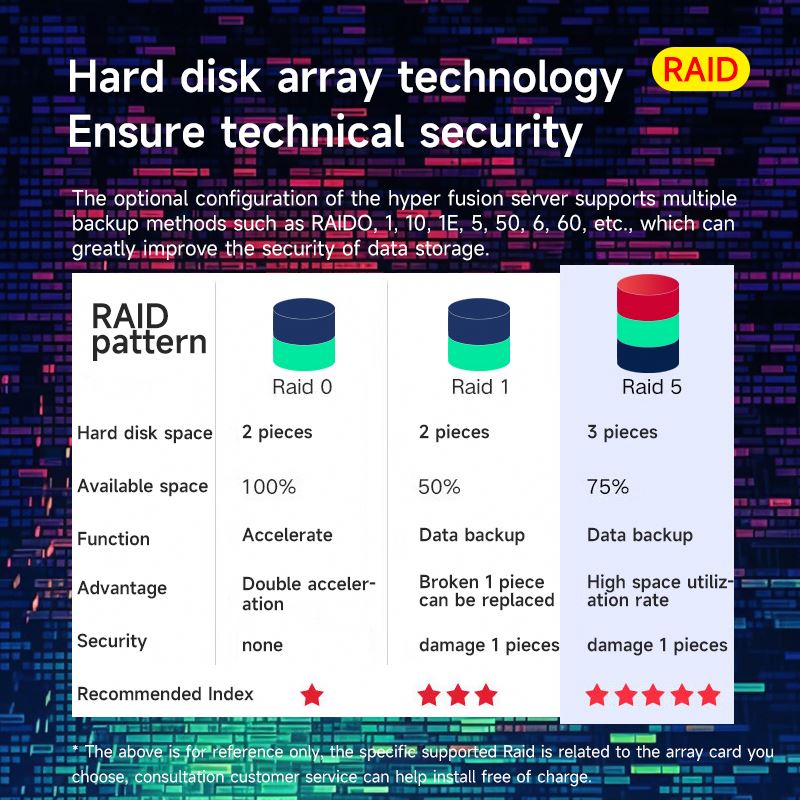

| RAID Support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
| Network | Provides expansion capability of multiple types of networks. OCP 3.0 NICs supported. The two FlexIO card slots support two OCP 3.0 network adapters respectively. Hot swappable function supported. |
| PCIe Expansion | Maximum of fourteen PCIe 4.0 slots, including one dedicated for RAID card, two FlexIO card slots for OCP 3.0, and eleven PCIe 4.0 slots for standard cards. |
| Chip Set | Intel C621A |
| Management | iBMC chip integrates one dedicated GE management port. Supports Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM. Optional FusionDirector for advanced lifecycle management. |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc. |
| Operating Temperature | 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant) |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10in.) |
| Power Supply | Hot-swappable PSUs in 1+1 redundancy. Options: 900W, 1500W, 2000W, 3000W (AC/Platinum/Titanium/HVDC/-48V DC). |
As a leading integrated IT solutions provider, we combine cutting edge in-house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. We utilize high-standard protective materials to prevent damage during international transit.
